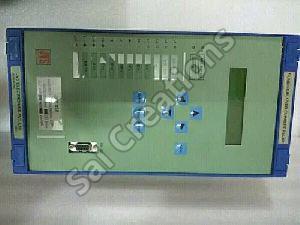

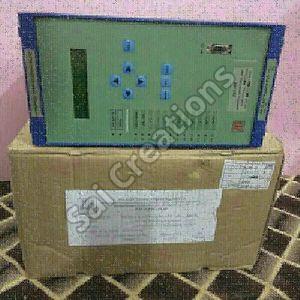

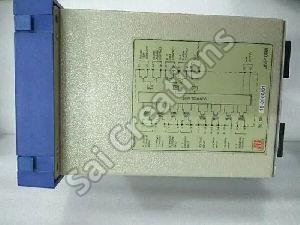

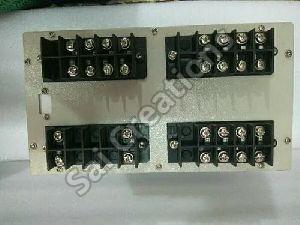

JNP 098 JVS Numerical Over Current Relay
| Business Type | Exporter, Supplier, Trader |
| Country of Origin | India |
| Finishing | Polished |
| Brand Name | JVS |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Voltage rating (Un )
110V AC / 63.5V AC
Aux. Supply
1) 20 to 60V DC 2) 75 to 150V AC / DC 3) 175 to 300V DC 185 to 250V AC
Definite Time
0.1 to 25.0 Sec in steps of 0.1s
Inverse Time Curve
3 Sec Normal Inverse Curve
Hi-set Setting
Choice of Active / Inhibit Mode Phase - 200 to 3200% in Steps of 100% E/f - 50 to 800% in Steps of 5
JND 098/096/096P provides directional over current protection for power systems. Relay operating time is determined by selecting definite time characteristics or one of the four inverse time characteristics i.e. (3s normal inverse, 1.3s normal inverse, very inverse and extremely inverse). The operating region is defined by the characteristic angle selected. The relay measures the current and voltage from each of the phases and if the phase angle in the operating zone of the relay, then the relay extends trip signal.
